PDC-400	PDC-800	PDC-1000
Loading capacity	400 kg	800 kg	1000 kg
Platform	900 x 700 mm	1100 x 700 mm	1300 x 900 mm
Tank material	AISI Chrome
Solution volume	800 lt	1200 lt	1900 lt
Solution depth	800 mm	900 mm	1100 mm
Control	PLC
Platform movement	400 mm by Pneumatic piston	500 mm by Pneumatic piston	700 mm by Pneumatic piston
Temperature ranges	20 – 90 C
Control voltage	24 Volt Dc.
Electric	380 v / 3 ph
Air pressure	6 – 7 bar
Agitation	Adjustable speed
Termostat	0-120 oC
Body Material	AISI Chrome
Tank Capacity	Optional
Discharge valve	Standart
Cover Opening system	Pneumatik-Steel

- Automotive industry
- Aircraft industry
- Shipbuilding industry
- Military industry
- Metal industry
- Coating industry
- Food industry

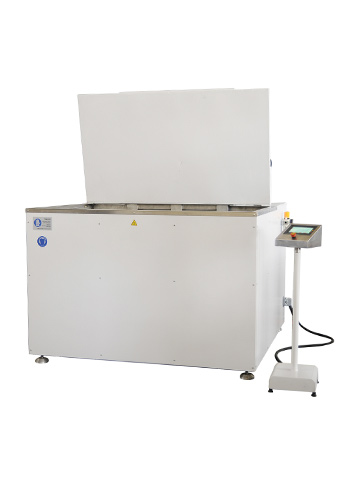

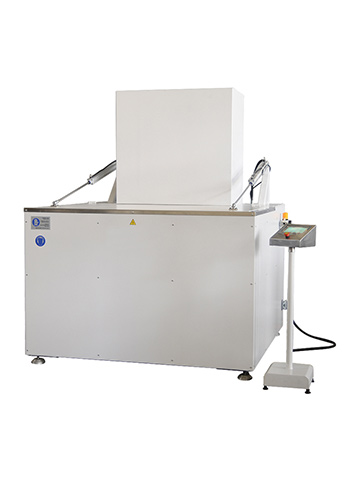

PLATFORM AGITATION WASHING MACHINE are the latest design of the original pneumatic driven platform agitation parts washer. It is ideal for use in many industries including transportation, metalworking, printing, and reconditioning.
The movement of parts with in the liquid reduces dramatically the washing time and improves the cleaning eficiency, without affect ingnegativelythe duration of the cleaning media.
Agitation machinery which are designed for the removal of oils, chips, and particulate from a wide range of components by using water based detergents and environmentally safe solvent chemistries.

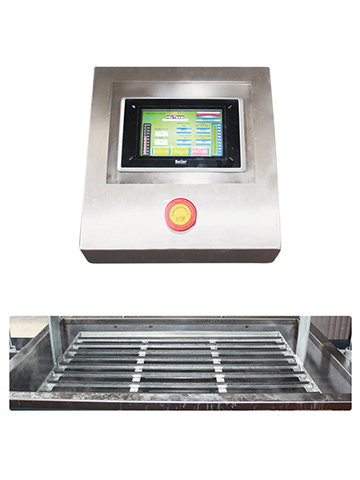

All controls have been doing by PLC control unit.
