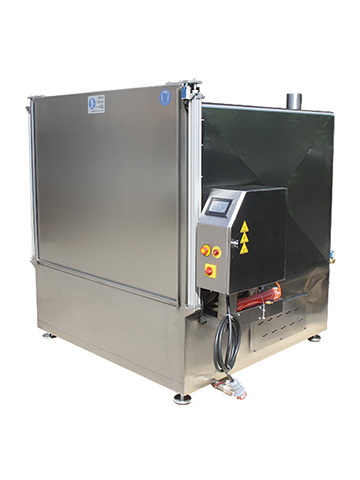

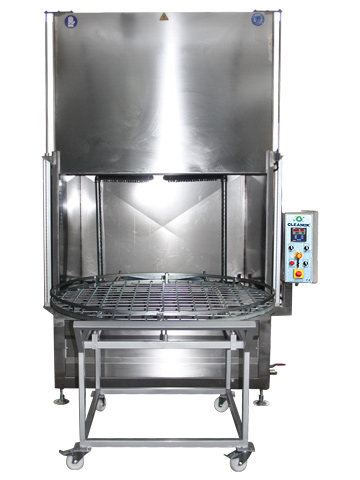

Spray Washers | CM-1500 / CM-1750
Technical Specification
|
CM-1500 |
CM-1750 |
| Machine dimensions |
1500 x 1500 x 1800 mm |
1750 x 1750 x 1900 mm |
| Basket diameterØ |
1350 mm |
1600 mm |
| Loading height |
700 mm |
800 mm |
| Basket capacity |
650 kg |
750 kg |
| Pump power and piece |
3 hp X 2 Piece |
| Pump structure |
Stainless stell – Ceramic seal |
| Pump |
CLEANOX |
| Heater |
30kw |
| Electric/phase |
380 V / 3 |
| Electric system |
ABB/ SCHNEIDER |
| Termal and engine protection |
Standart |
| Timer |
0-30 dk/min. |
| Thermostat |
0-120 oC |
| Body structure |
AISI Chrome |
| Tank capacity |
250 lt |
275 lt |
| Supply and discharge valve |
Standart |
| Loading vehicle |
Standart |
| Door Opening system |
Pneumatic - Stell |
Using Areas
- Automotive industry
- Aircraft industry
- Shipbuilding industry
- Military industry
- Metal industry
- Coating industry
- Food industry
Optional Specification
Our Company Manifacture Part Washing Machine According To What All Kinds And All Specification.
- Oil seperator
- Docunmatic screen
- Insulation system
- Precision filtration
- Drying
- Rinsing
- Water treatment system
- Steam discharge
- Body structure
- Pump piece
- Basket structure
- Nozzle piece
- Automatic loading system
- Automatic feeding system
- Liquid level control system
